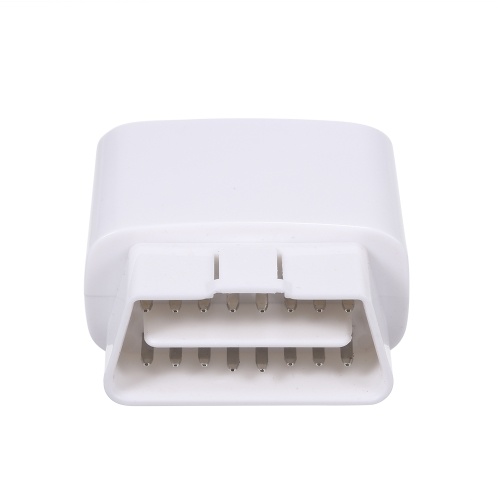

Vgate iCar1 OBD2 Diagnostic Scanner Support J1850 Protocol


SKU: 19_11281_K6535-1 Category:


Small size, compact structure. Plug and never unplug.
Stable connection.
When stop communication, wait half an hour, auto sleep.
Supports all OBDII protocols.
The adapter uses the fastest and most reliable ARM chips.
iCar (BT version) support for software applications for Palm, PDA, Mobile (Androis, java, blackmerry, etc).
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL (Check Engine light)
Display current sensor data, including engine RPM, calculated load value, coolant temperature, fuel system status, vehicle speed, short/long term fuel trim, intake manifold pressure and so on.

BT version supports all OBD-II protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250 * Kbaud)
B.USER1 CAN (11 * bit ID, 125 * Kbaud)
C.USER2 CAN (11 * bit ID, 50 * kbaud)
