Description

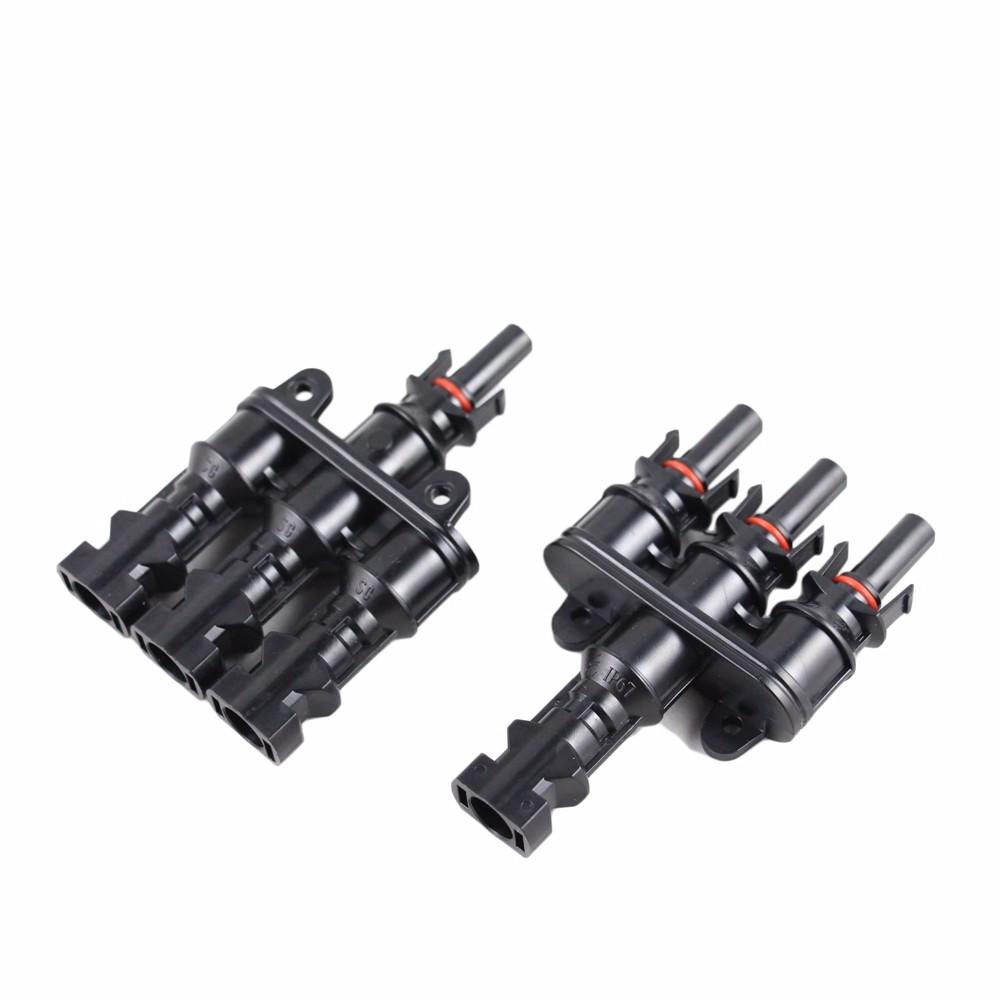

Description: MC4T-A2 Solar Panel MC4 3 to 1 T Branch Connectors One Female to Three Male One Male to Three Female MC4 Panel Cable ConnectorsFeatures:1.low power loss.2.solar connector for solar power system.3.all the connection made by double fixed connection.4.with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover with convenient installation, strong commonality.5.to meet the using requirement under bad outdoor condition.Specifications:Product No.: MC4T-A2Rated Voltage: TUV 1000V DC / UL 600V DCRating Current: 20A ~30ASuitable cable cross sections: 2.5mm2~6.0mm2 / 14AWG~10AWGPin dimension: 4.0mmProof voltage: DC 8KV(1Min) Pollution degree: 2Protection class: Class IIContact Material: Copper, tin-platedContact Resistance: 5mWConnector Material: PPODegree of Protection IP: IP67(IEC 60529)Withdrawal Force: 350NInsertion Force: 50NTemperature Range: -40o~+85o℃Flame Class: UL94V – 0Package included:1 xMC4T-A2 Solar PanelBranch ConnectorsDetails pictures:
