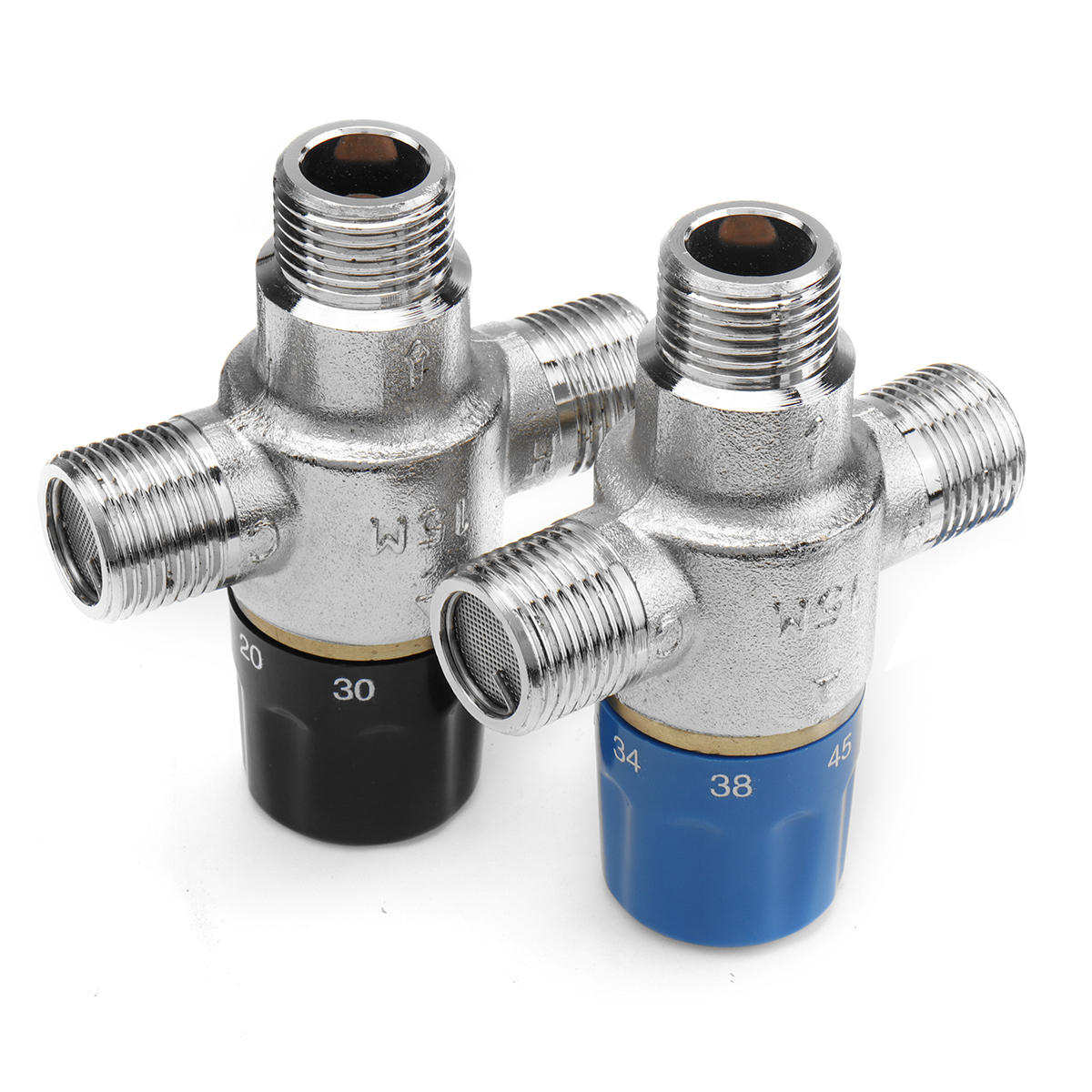

Full Copper Temperature Mixing Valve Thermostatic Core Thermostatic Shower DN15 16m³/h

Description

Description:Name:Temperature Mixing ValveCold water temperature: 4CHot water temperature: 100COutlet flow: 16 (m/h)Size: 15 mmColor: blue, blackWorking pressure: 0.05mpa — 1MpaIdeal pressure: 0.1mpa — 0.5mpa. Pressure reducing valve should be installed if the pressure exceeds 0.5mpa.Standard pressure: dynamic pressure 0.3 0.02Mpa.4-29 ℃, the temperature of supply water, hot water temperature: 55-85 ℃, and suggested that the normal use temperature is 60-70 ℃.Constant temperature water temperature range: 20 to 50 ℃.Set the safety button temperature: 38 ℃.Features:- Lock the temperature, set the water temperature, the valve core can automatically adjust the hot and cold water flow, balance the water pressure, to prevent the phenomenon of hot and cold.- The components adopt high precision and high sensitivity thermal-sensitive components which are similar to auto temperature economizer.- With anti-overheating lock function, when the cold water interrupted in a few seconds can automatically turn off the hot water, effective protection of your bath safety.- Long life and corrosion resistance.- Easy and quick installation, can be directly connected to the household water pipe, or with the use of ball valves, suitable for a variety of water heaters.- Safety and anti-hot: when the cold water supply is lost unexpectedly, the mixed water flow rate will decrease rapidly from to close.- Temperature precision: first set the required temperature, within 5 s after the water can reach y
