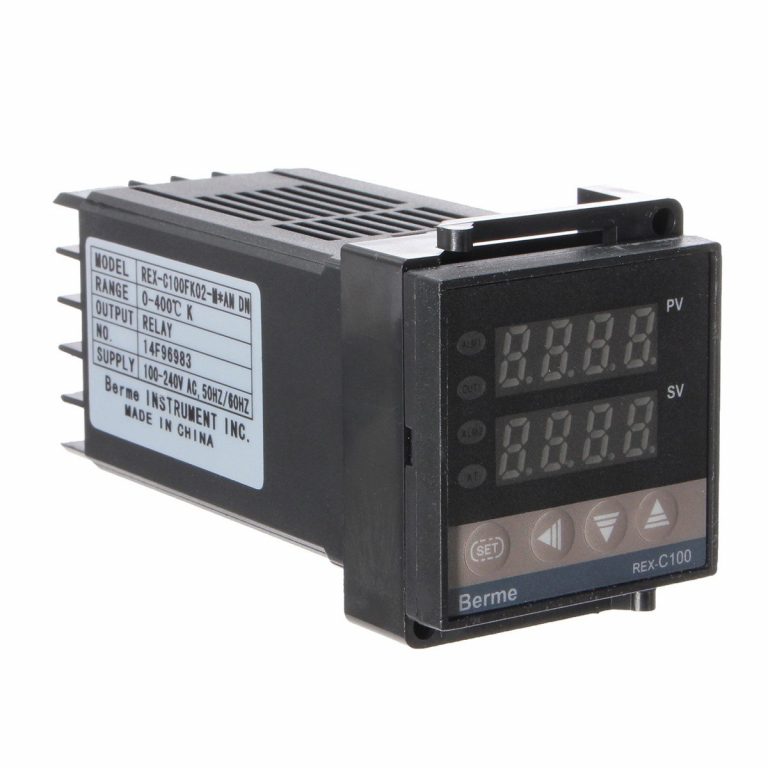

Dual PID Digital Temperature Control Controller Thermocouple REX-C100

$14.13

Features :Dimensions: 48mm48mm110mm(APP)Measuring accuracy: 0.5%FSCold-end compensation tolerance: 2℃ (can be modified by software in 0~50℃)Resolution: 14 bitSampling cycle: 0.5 SecProcess value (PV), Setting value (SV)Output, alarm and self-tuning can be indicated by: LEDPIN control (including ON/OFF, step-type PID and continuous PID)Self-tuning controlVoltage pulse output: 0/12V (suitable for solid state relay SSR)Alarm function output: 2 wayContact capacity of output: 250V AC 3A (resistive load)Setting value (SV): identical to measuring range (PV)Proportional band (P): 0~full range (ON/OFF control when set to 0)Detective temperature range: 0 to 400℃Insulation resistance: 50M ohm(500V DC)Insulation resistance: 1500V AC/minPower Consumption: 10 VAService environment: 0~50℃,environment with no corrosive gas 30~85% RHPlease assure that you are familiar with this product before you buy, because the manual we offer is Chinese.Package Includes:1 x PID Digital Temperature Control ControllerDetails Pictures :

SKU: 1045_10523_40429 Category:

Description

Features :Dimensions: 48mm48mm110mm(APP)Measuring accuracy: 0.5%FSCold-end compensation tolerance: 2℃ (can be modified by software in 0~50℃)Resolution: 14 bitSampling cycle: 0.5 SecProcess value (PV), Setting value (SV)Output, alarm and self-tuning can be indicated by: LEDPIN control (including ON/OFF, step-type PID and continuous PID)Self-tuning controlVoltage pulse output: 0/12V (suitable for solid state relay SSR)Alarm function output: 2 wayContact capacity of output: 250V AC 3A (resistive load)Setting value (SV): identical to measuring range (PV)Proportional band (P): 0~full range (ON/OFF control when set to 0)Detective temperature range: 0 to 400℃Insulation resistance: 50M ohm(500V DC)Insulation resistance: 1500V AC/minPower Consumption: 10 VAService environment: 0~50℃,environment with no corrosive gas 30~85% RHPlease assure that you are familiar with this product before you buy, because the manual we offer is Chinese.Package Includes:1 x PID Digital Temperature Control ControllerDetails Pictures :
