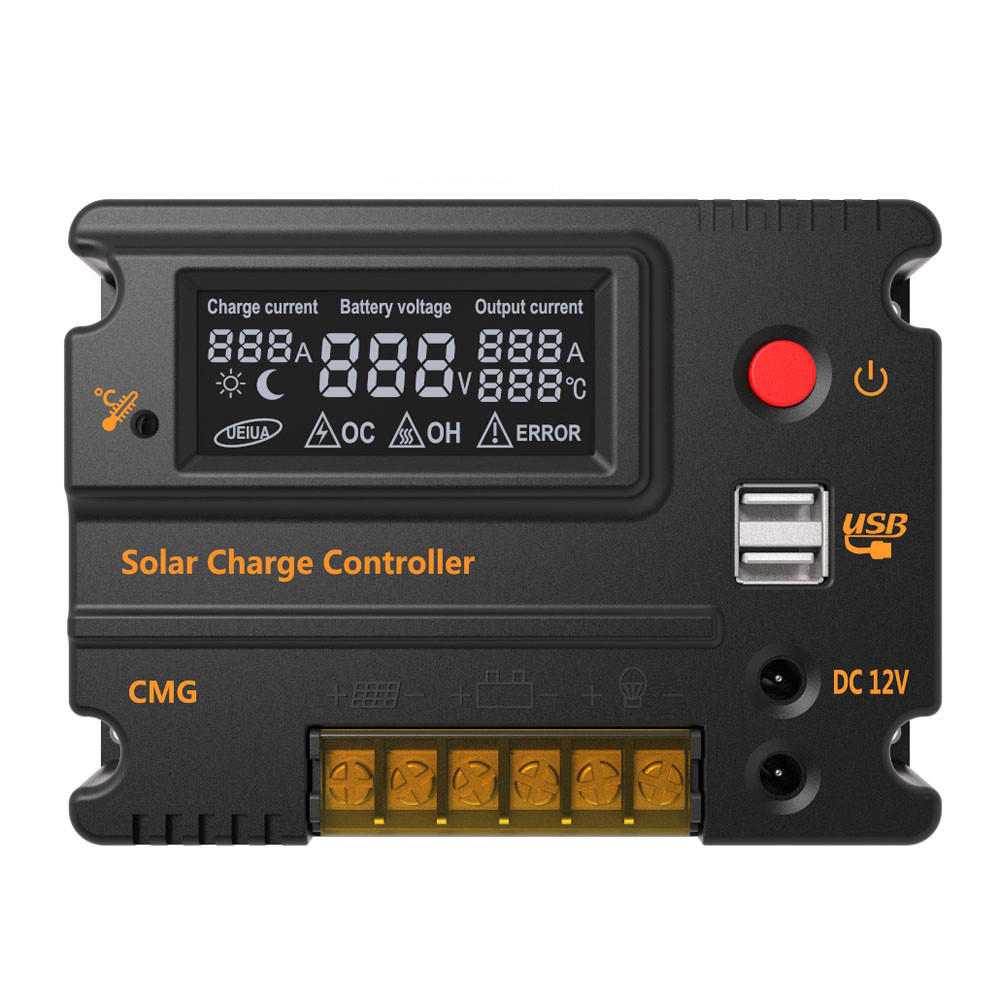

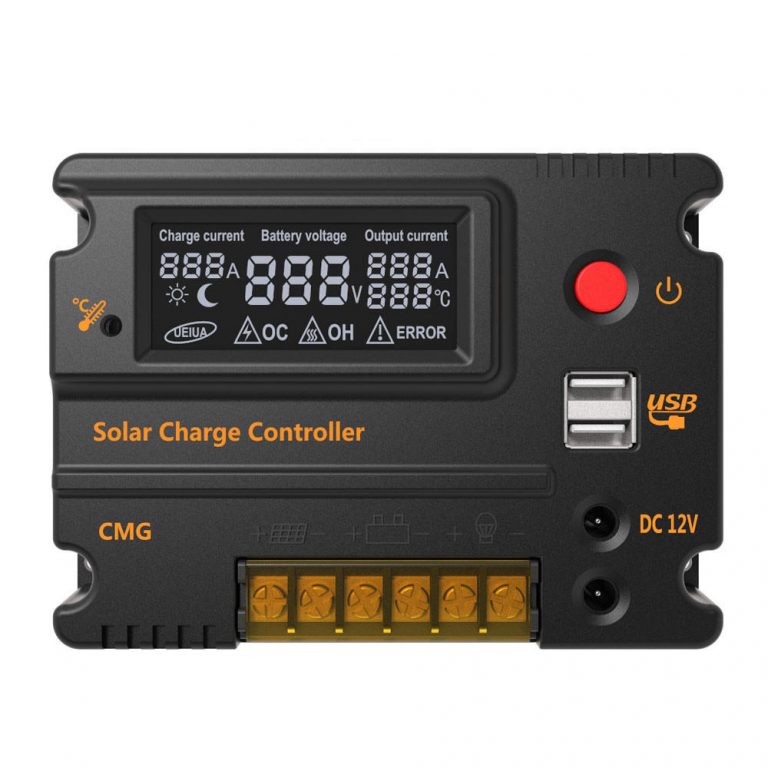

CMG-2420 12V/24V 20A Solar Charge Controller Panel Battery Regulator Auto Switch Overload Protection

$31.21

Description:This solar charge controller adopts the advanced digital techniques and operates fully automatically. The PWM battery charging mode can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.Specifications:ModelCMG-2420MaterialPlasticColorBlackVoltage of Battery12V / 24V AutomaticRated Charge/Discharge Current20AUSB Output Voltage5VTotal USB Output Current3ADC Output Voltage12VTotal DC Output Current2AOverload/Short Circuit Protection1.5 Times by Rated CurrentShort Circuit Recovery Time10sOpen Circuit Voltage of Solar Panel40VNo Load Loss0.05WOver Voltage Protection15V; x2/24VFloat Charge Voltage14V; x2/24VDischarge Recovery Voltage12V; x2/24VOver Discharge Voltage10.5V; x2/24VControl ModeSoftware Intelligent ControlWorking Temperature-35~55CItem Size135 * 100 * 25mm / 5.31 * 3.94 * 0.98in (L * W * H)Item Weight222g / 7.83ozPackage Size14.5 * 12 * 3.8cm / 5.7 * 4.72 * 1.5in (L * W * H)Package Weight270g / 9.54ozFeatures:- LCD screen display all parameters.- With output switch, intelligent control, easy to operate.- Fully automatic operation.- Microcontroller digital accuracy.- A key to open and close the load.- PWM charging mode(SOC).- With separated temperature detected circuit, high precision temperature compensation function.- DC 12V and USB 5V charging for DC lamp and phone.Protection:- Overload protection;- Short-circuit protection;- Lighting protection;- Under-voltage protection;- Over-charging protectio

SKU: 1045_10523_1181760 Category:

Description

Description:This solar charge controller adopts the advanced digital techniques and operates fully automatically. The PWM battery charging mode can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.Specifications:ModelCMG-2420MaterialPlasticColorBlackVoltage of Battery12V / 24V AutomaticRated Charge/Discharge Current20AUSB Output Voltage5VTotal USB Output Current3ADC Output Voltage12VTotal DC Output Current2AOverload/Short Circuit Protection1.5 Times by Rated CurrentShort Circuit Recovery Time10sOpen Circuit Voltage of Solar Panel40VNo Load Loss0.05WOver Voltage Protection15V; x2/24VFloat Charge Voltage14V; x2/24VDischarge Recovery Voltage12V; x2/24VOver Discharge Voltage10.5V; x2/24VControl ModeSoftware Intelligent ControlWorking Temperature-35~55CItem Size135 * 100 * 25mm / 5.31 * 3.94 * 0.98in (L * W * H)Item Weight222g / 7.83ozPackage Size14.5 * 12 * 3.8cm / 5.7 * 4.72 * 1.5in (L * W * H)Package Weight270g / 9.54ozFeatures:- LCD screen display all parameters.- With output switch, intelligent control, easy to operate.- Fully automatic operation.- Microcontroller digital accuracy.- A key to open and close the load.- PWM charging mode(SOC).- With separated temperature detected circuit, high precision temperature compensation function.- DC 12V and USB 5V charging for DC lamp and phone.Protection:- Overload protection;- Short-circuit protection;- Lighting protection;- Under-voltage protection;- Over-charging protectio
