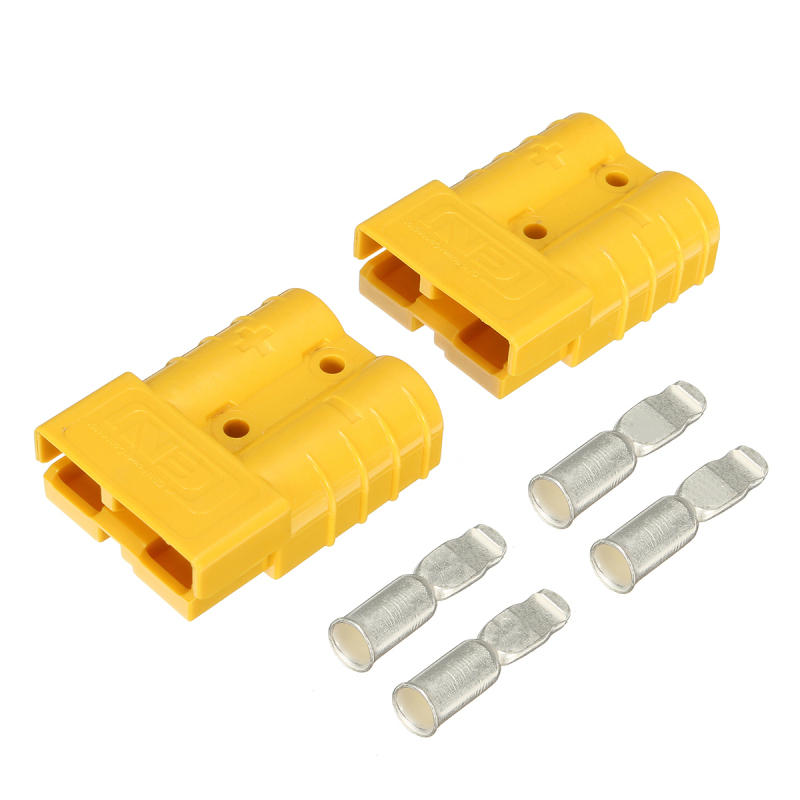

2Pcs 50ADC12/24V Anderson Style Plug Connectors Anderson Power Plug 4X Terminals Yellow

$5.38

SKU: 1045_10523_1203842 Category:

Description

Specifications:Color: YellowHousing Material: Polycarbonate (PC)Contact material: Pure copper silver platingRated Current: 50ARated Voltage: 600VVoltage:For 12v or 24v UseVibration Resistance: ExcellentImpact Resistance: HighCable Size: 6BS / 6AWG (up to 13.3 sq mm)Average contact resistance: 0.05MVoltage proof: 2200V (DC)Insulation resistance: 500MA. No load (Contact/Disconnect Cycles): To 10,000B. Under load (Hot Plug [email protected]): 50AFlammability Rating of Housing Material: UL94 V- 0Operating temperature range: -20to 105Connector Dimensions: 35.1mm x 48mm x 15.9mmFeatures:● The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.● Provide simplified assembly and minimize the number of components.● Silver plated copper contacts inside housings that strongly force the contacts together.● Contacts feature a sacrificial tip that allows high current circuit interrupt.● Prevents accidental cross mating of circuits.● For signal transmission or the added safety of a premate ground position.● Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.Application:Common use includes: Battery Connections,Forklifts,Battery Chargers,Solar Panels,Wind Generators,Tow Trucks,Snow Plows,Farm Equipment,Jumper Booster Cables,Welding Equipment,Winches,Electric Vehicles.etcPackage Included:2 x Plugs4 x TerminalsMore details:
