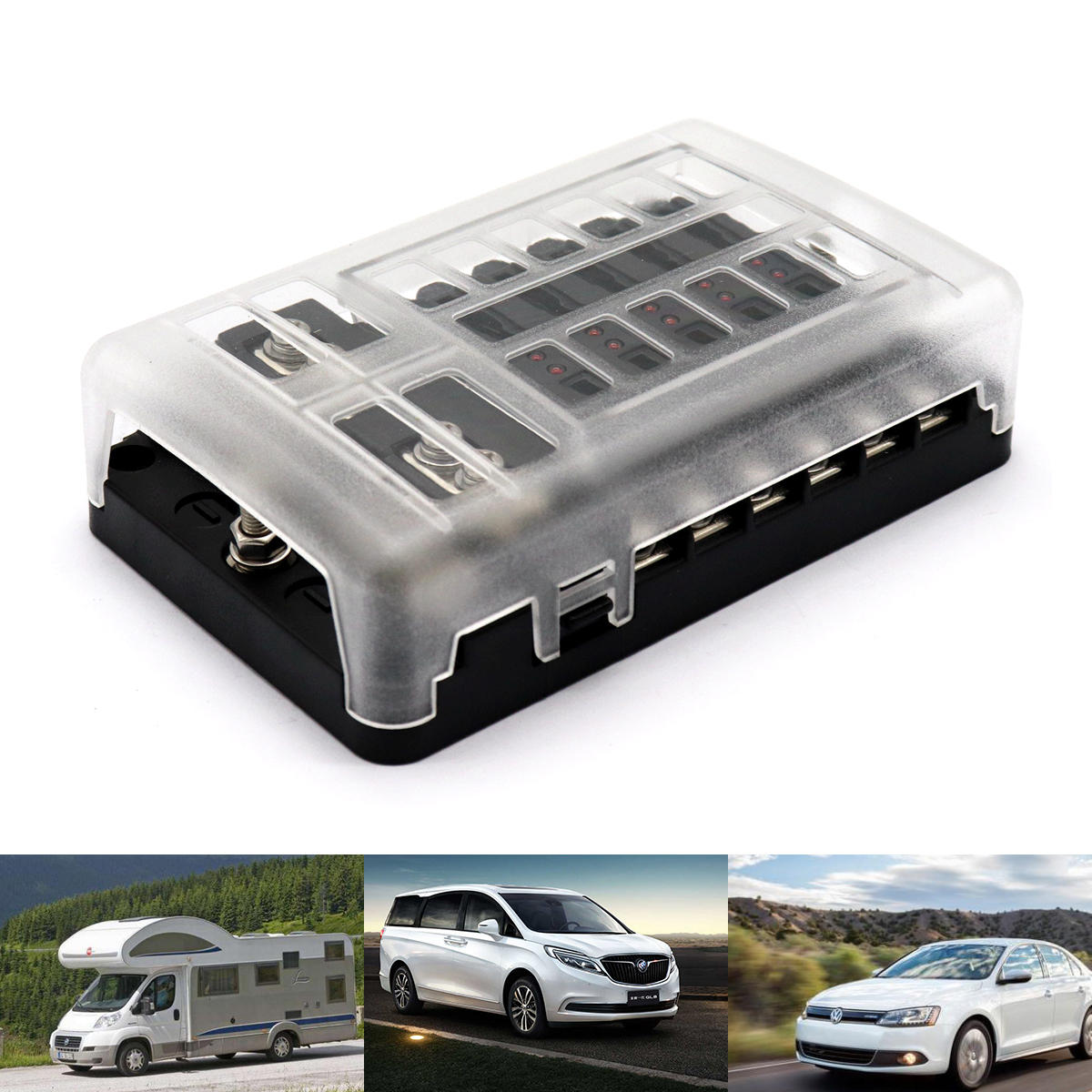

12-Way Fuse Box Holder LED Indicator Negative Busbar Caravan Boat Marine

Description

Feature:1. Universal Fits All automotivemotorsport applications ,such as Car Boat Marine Motor-home.2. Built in Indicator LED, when the fuse is disconnected, the red light will be on, you can immediately knowwhich fuse is broken, convenient and timely processing.3. Adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials, have goodmechanical strength, insulation, heat resistance and flame retardancy.4. All busbars and fuse clips are nickel-plated copper for corrosion resistance and optimum conductivity.5. The output end is fixed by tightening screws, which can be installed more quickly. safety box is fixed by self-tappingscrews, which makes installation easier and safer.6. Sticker can be attached to the electrical appliance. Thereby functioning to protect the circuit and operate safely.Specification:Size: 138*85*36.5mmApplicable to: 32VMain line size: #4-6 AWGMain line terminal: M5 stud (100A32V DC.max).Single line: #12-16 AWGSingle line terminal: M4 stud bolt (30A32V DC.max).Material (Base: PBT /Cover: PC /Terminal: Nickel-plated copper/ Screw: Stainless steel/Label: PP70)The box can be secured via 4 pre molded holesSuitable for middle size blade fuse (ATC,ATO)Package Included:1 X 12-way Fuse Box4 X Screw2 X Sticker
