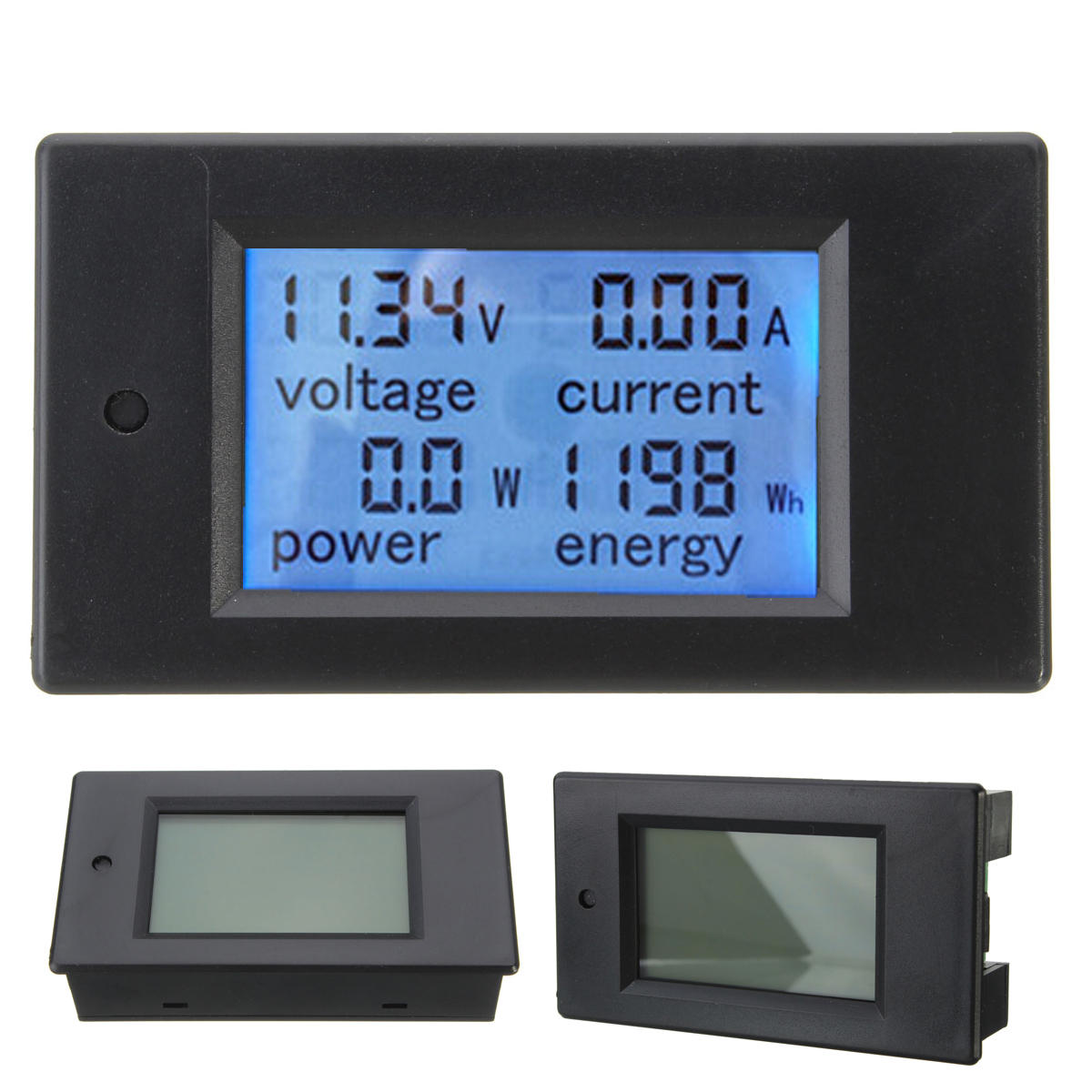

100A DC Digital Multifunction Power Meter Energy Monitor Module Volt Meterr Ammeter 6.5V-100

Description

100A DC Digital Multifunction Power Meter Energy Monitor Module Voltmeter Ammeter 6.5V-100VDescription:Working VoltageDC 6.5V-100VMeasuring VoltageDC 6.5V-100VMeasuring Current0-100ARated Power10000WDisplayLCDDisplay FormatPower0.0-999.9W (1KW)1000-10000w(1KW)Energy0-999Wh(10KWh)10-9999KWh(10KWh)Voltage6.50-99.99VCurrent0.00-100.00AFeature:100A DC multifunction power meterLCD display wih backlight, easy to readPower, current, voltage and energy display and monitor timely , easy to know electric energy consumptionElectric energy clear function, perfect for various device monitor separatelyOverload alarm function (over power alarm threshold, the backlight and voltage flashing alarm)Power memory, shave the power parameter when power down, safe to useOperaqtion Tips:1. The backlight controlBy short press the button to turn on or off the backlight, In the bakclight mode,the data will automatically store when power down2. The energy clearedStep 1: Press the power button 5 seconds until the digital display CLr, then release the button;Step 2: Now it is in the energy clear mode, press the button again, the energy data is cleared and stop flashing;Step 3: If in the energy clear modeyou do not press the button in 5 seconds,then the energy data will not be cleared3. Set power alarm valueStep 1: Press the button, when the power area display SET , release button,Step 2:it is in the pweor alarming setting mode, the voltage area displays the highest value of the voltage alarm,the current ar
