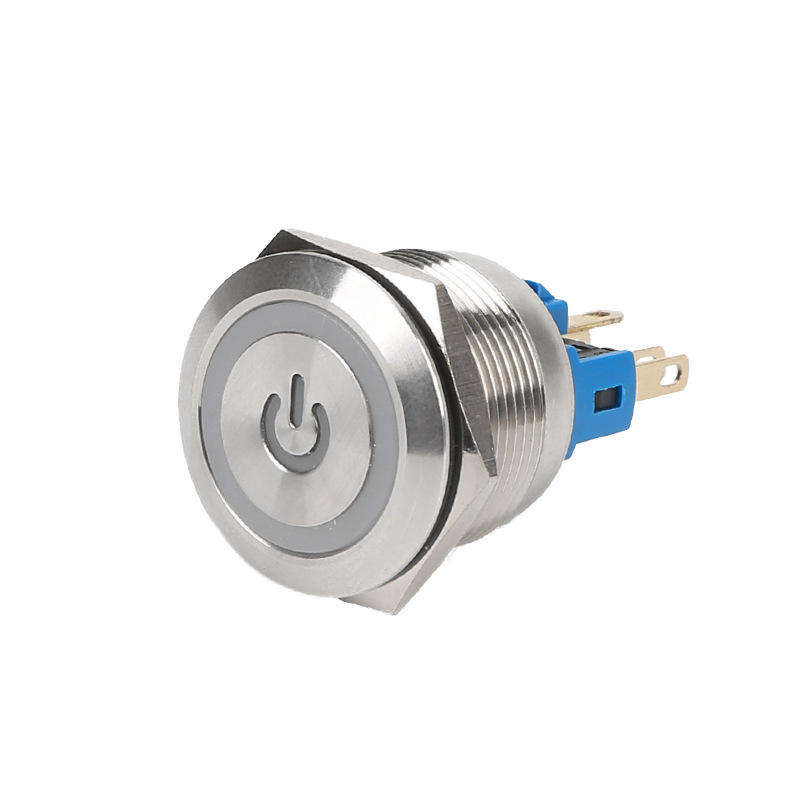

24mm L155-G22S-11EDY/J Push Button LED Lamp Self-reset Power Source Start Button Switch

$17.34

Performance characteristics:Working environment temperature: -25C~+55C (no freezing)Air must be circulated around the body of the light switch.Working environment humidity: 48~85%PHContact resistance:50MInsulation resistance: 1000MInsulation strength: 1500V/AC 50HZ/60HZMaximum withstand voltage: 1500V, AC 50 Hz, 5 secondsVibration resistance: 50 Hz, amplitude about 1.2MMImpact resistance: 10GSolder heat resistance: 320C (or 30 watt soldering iron) no more than 2 secondsLamp bead specifications:Lamp type: Stepless two-way LED lamp bead (AC/DC universal)Luminous color: Red, Yellow, Blue, Green, WhiteLife: 40000 hours (reference value)Rated voltage: AC/DC (6V/12V/24V/220V)Rated current: 15MABuck mode: Built-in resistorProduct soldering precautions:Any incorrect welding operation may result in plastic deformation of the product, poor switching, etc. When using the push button switch and indicator light, the user may damage the product due to improper soldering. Therefore, please pay attention to the following points when wiring the user:1. Select the appropriate soldering iron to speed up the soldering. It is recommended to use the fused iron below 30W to complete the soldering at 320C for 2 seconds.2. The flux must be in proper amount, and the switch pins should be placed as far as possible when soldering.3. Try to use the plug-in terminal connection to avoid soldering connections.Package Included:1 xPush button switch

SKU: 1045_10523_1417970 Category:

Description

Performance characteristics:Working environment temperature: -25C~+55C (no freezing)Air must be circulated around the body of the light switch.Working environment humidity: 48~85%PHContact resistance:50MInsulation resistance: 1000MInsulation strength: 1500V/AC 50HZ/60HZMaximum withstand voltage: 1500V, AC 50 Hz, 5 secondsVibration resistance: 50 Hz, amplitude about 1.2MMImpact resistance: 10GSolder heat resistance: 320C (or 30 watt soldering iron) no more than 2 secondsLamp bead specifications:Lamp type: Stepless two-way LED lamp bead (AC/DC universal)Luminous color: Red, Yellow, Blue, Green, WhiteLife: 40000 hours (reference value)Rated voltage: AC/DC (6V/12V/24V/220V)Rated current: 15MABuck mode: Built-in resistorProduct soldering precautions:Any incorrect welding operation may result in plastic deformation of the product, poor switching, etc. When using the push button switch and indicator light, the user may damage the product due to improper soldering. Therefore, please pay attention to the following points when wiring the user:1. Select the appropriate soldering iron to speed up the soldering. It is recommended to use the fused iron below 30W to complete the soldering at 320C for 2 seconds.2. The flux must be in proper amount, and the switch pins should be placed as far as possible when soldering.3. Try to use the plug-in terminal connection to avoid soldering connections.Package Included:1 xPush button switch
