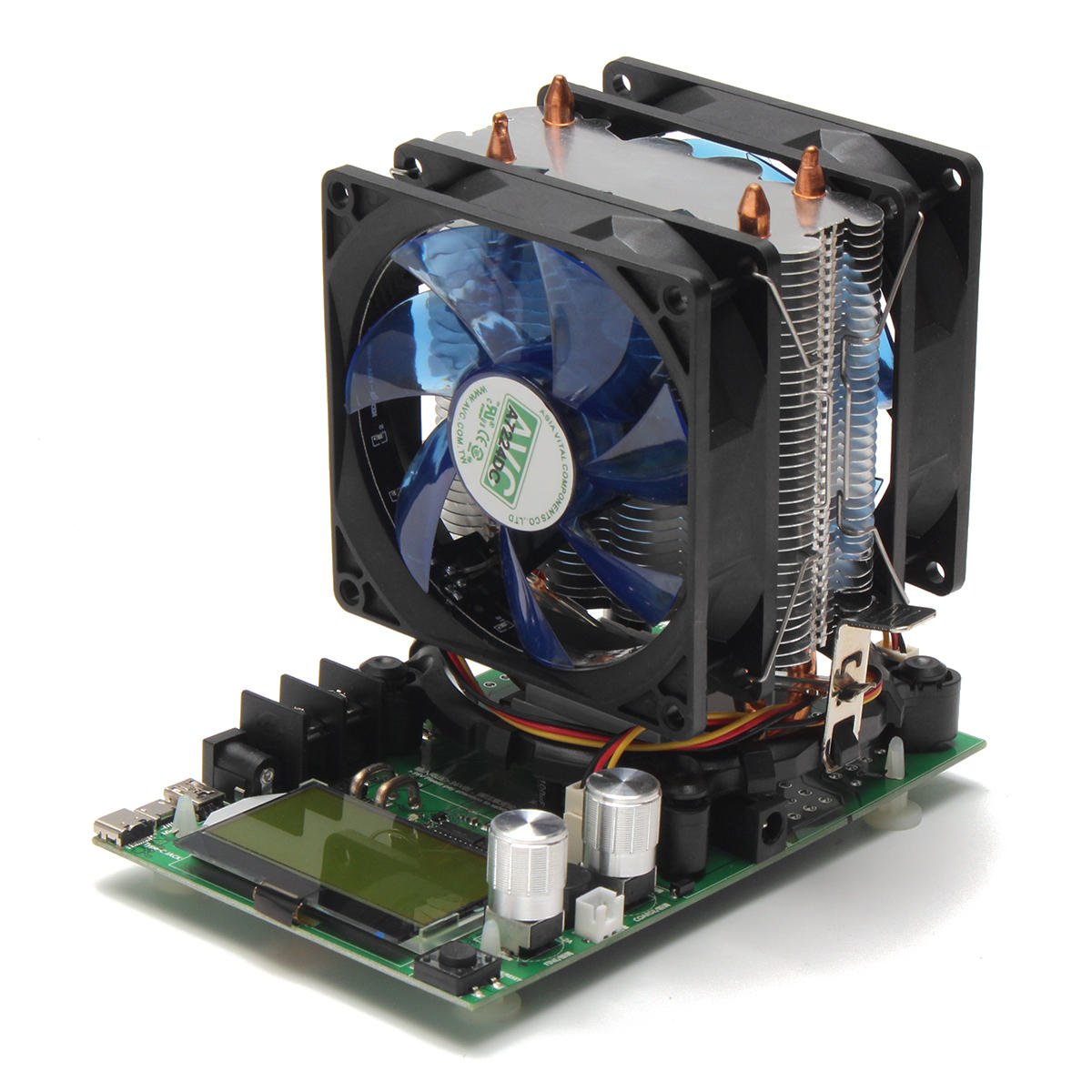

200V 20A 180W Constant Current Electronic Load Battery Discharge Capacity Tester

Description

Specifications:-Name: Constant Current Electronic Load Tester-Model: 856138-Input interface/Output interface:100A large current occluding screw column- Voltage testing range:0.00V~200V;Resolution accuracy:0.01V- Current testing range:0.00A~20A;Resolution accuracy:0.01A- Capacity accumulated range:0~999.999Ah;Resolution accuracy:0.01Ah- Electricity accumulated range:0~9999.9Wh;Resolution accuracy:0.01Wh- Power measurement range:0000.00~150/180 W;Resolution accuracy:0.01W- Impedance measurement range:1~999.9 ohm;Resolution accuracy:0.01ohm- Temperature measurement range:0~99℃,0~99℃;Resolution accuracy:1℃- Timing the max time:999 hours 59minutes 59 seconds;Resolution accuracy:1s- Timing testing alarm setting:count down 24 hours Arbitrary setting value- Small current standby alarm threshold parameter and timing:2W/0.5 hour; 0.5W begin timing- 4~30V DC voltage provides electricity for testing system- Refresh time:500mS/times; 500mS/times- Testing speed rate:about 0.5 times/s- Over voltage over current setting alarm method:display warming interface alrm users- Over voltage warning setting range:1~200V- Low voltage warning setting range:0~190V- Over current warming setting range:0.2~100A- Display screen type:micro power consumption crystal module LCM black font green backlight Chinese English display screen- Working temperature:-10~+60℃; -10~+60℃- Working humidity:10~80℃ (no condensation);10~80℃(no doubt)- Working gas pressure:80~106kPa – When the power is0.5W, the time will be ca
